Supplies:

• Trico Maro Oil or any light oil
• 4 or 5 inch hose (a air hose line off of an aquarim will work)



Proceedure:

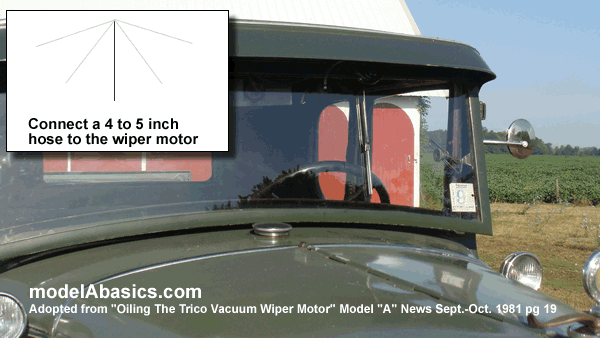

1. Connect a 4 to 5 inch hose to the wiper motor
2. Start with the wiper pointed down
3. Move it to the extreme right.
4. Pull the blade back 3/4 of its normal travel.
5. Submerge a 4" hose into light machine oil (about 2 tbs.)
6. Make a quick swipe till wiper points down.
7. Remove oil and finish Stroke.
8. Repeat the sequence the opposite direction.



Adopted from "Oiling The Trico Vacuum Wiper Motor" Model "A" News Sept.-Oct. 1981 pg 19

For Further Research:

MAFCA Tech Q&A - Windshield Wipers By Rick Black, Medford Oregon
This page includes photos of original wipers and era replacements.

TRICO History - For more than 90 years, TRICO® has been a global leader in wiper technology, providing reliable, innovative wiper blade products that come through at the moment you need them most.

http://www.fundinguniverse.com/company-histories/trico-products-corporation-history/



As long as they are not used for commercial purposes, permision is given to use the above graphics for tech articles, club presentations, and posts. By right clicking and copying the animated gifs, they can be placed into a PowerPoint presentation. (Note: They will not animate until the presentation is started). My only request is that you pay it forward and share anything created with others. If you create a nice tech article, E-mail it to me and I will post it. Thanks for visiting, Paul Modlin, paul@modelAbasics.com
